Login Audit

Package docs status

This page is generated from public package documentation in capell-4/packages and the package manifest checked into the source repository.

Field	Value
Composer package	`capell-app/login-audit`
Package slug	`login-audit`
Product group	Capell Operations
Tier	premium
Bundle	`operations`
Runtime contexts	`admin`
Capell version	`^4.0`
Source repository	`capell-app/packages`
Source path	`packages/login-audit`
Docs source	`packages/login-audit/docs`
Manifest	`capell.json`

Login Audit records Capell user access history. It wraps Rappasoft’s authentication log package with Capell settings, a Filament resource, a dashboard widget, user-resource bridge fields, and IP retention controls.

At A Glance

Package: capell-app/login-audit
Namespace: Capell\LoginAudit\
Surfaces: Filament admin, database
Service providers: packages/login-audit/src/Providers/AdminServiceProvider.php, packages/login-audit/src/Providers/LoginAuditServiceProvider.php
Capell dependencies: capell-app/admin
Third-party dependencies: rappasoft/laravel-authentication-log, tapp/filament-authentication-log

Why It Helps Your Capell Workflow

Records login, failed login, logout, and admin/user metadata so operators can investigate account activity from Capell.
Helps owners spot authentication patterns without adding a bespoke security report to each project.
Pairs with password policy and diagnostics to make account safety visible as an operational workflow.

Best Used With

What It Adds

Filament resource for authentication logs.
Dashboard widget for recent access activity.
Settings schema for retention, IP tracking, resource visibility, and user-resource bridge fields.
Persistent admin middleware and frontend middleware alias for activity tracking.
User edit sidebar summary and relation manager when the bridge is enabled.

Why It Matters

For developers: The package keeps vendor logging in place but routes Capell-specific behaviour through Actions, settings, bridges, and resource configurators.

For teams: Operators can review access history, failed logins, IP addresses, user agents, and recent activity without opening database records.

Built With

This package makes its Composer dependencies visible because they are part of the value proposition, not just plumbing. When an upstream package has a public repository, its linked preview card points readers back to the maintainers so their work gets proper credit.

Capell packages used here

Capell Admin

Open-source packages used here

Laravel Authentication Log - authentication event storage for login, logout, IP, and user-agent history.
Filament Authentication Log - the Filament UI layer for reviewing authentication activity inside the admin panel.

Linked package previews

Screens And Workflow

Screenshots are generated from docs/screenshots.json during package deployment.

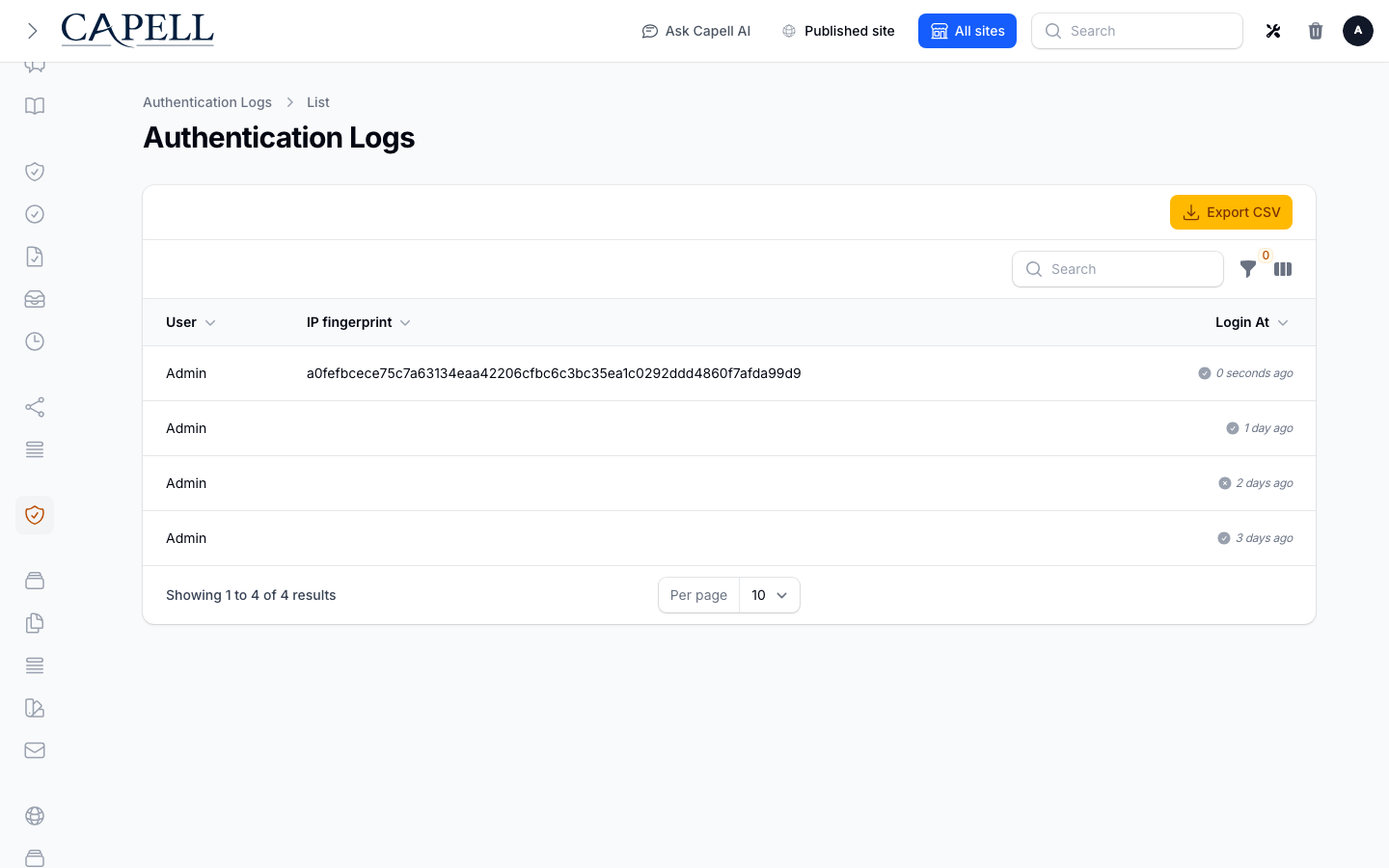

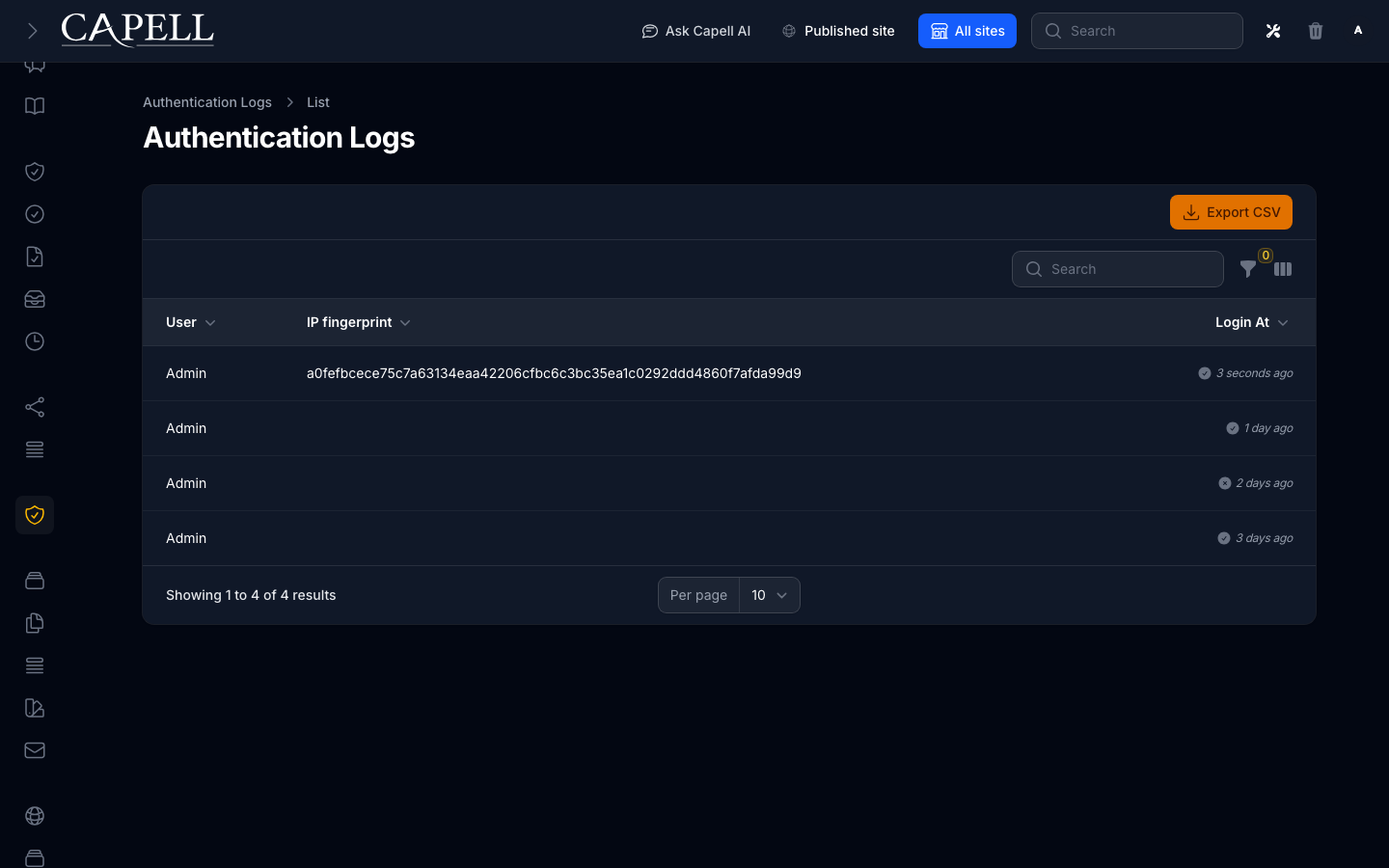

Authentication logs admin index.

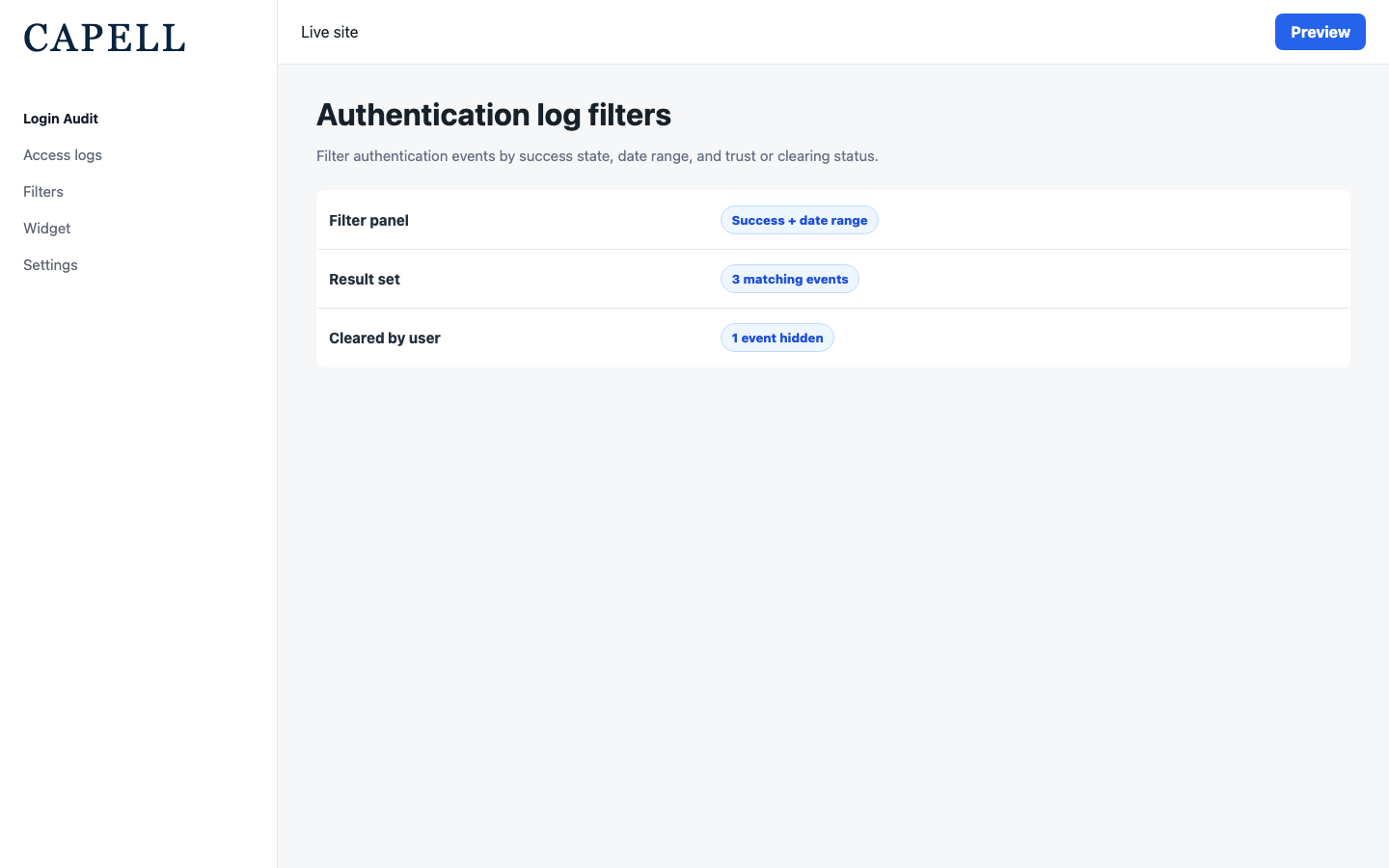

Authentication log table filters.
Dashboard widget.
Authentication log settings screen.
User edit access summary.
User authentication logs relation manager.

Technical Shape

LoginAuditServiceProvider registers config, translations, migrations, settings, protected table metadata, the frontend.activity middleware alias, and the LoginAudit model override.
AdminServiceProvider registers the admin bridge, Filament resource, dashboard widget, settings contributor, persistent admin middleware, and monthly login-audit:purge schedule.
LoginAuditResource extends Tapp\FilamentAuthenticationLog\Resources\AuthenticationLogResource and replaces the table with LoginAuditsTable.
AdminActivityMiddleware and UserActivityMiddleware update matching audit rows without changing unrelated vendor audit state.

Code Map

Area	Path	Purpose
Actions	`packages/login-audit/src/Actions`	Domain operations. Test these directly where possible.
Models	`packages/login-audit/src/Models`	Eloquent records owned by the package.
Filament	`packages/login-audit/src/Filament`	Admin resources, pages, widgets, and settings UI.
HTTP	`packages/login-audit/src/Http`	Controllers, middleware, and request handling.
Providers	`packages/login-audit/src/Providers`	Registration, extension hooks, routes, migrations, and resources.
Resources	`packages/login-audit/resources`	Views, translations, assets, and package resources.
Config	`packages/login-audit/config`	Package configuration and publishable config.
Database	`packages/login-audit/database`	Migrations, seeders, and settings migrations.
Tests	`packages/login-audit/tests`	Package-level Pest coverage.

Admin Surface

Resources: LoginAuditResource.
Widgets: LoginAuditsWidget.
Settings: LoginAuditSettingsSchema.
User resource bridge: LoginAuditUserSchemaExtender adds access summary state and LoginAuditsRelationManager when the host user model supports authentication logs.

Data And Persistence

login_audit stores authenticatable type/id, IP address, user agent, login time, and logout time.
Records belong polymorphically to authenticatable users.
Config purge value defaults to 365 days.
ApplyLoginAuditSettingsAction applies retention and IP tracking settings before the scheduled purge runs.
ResolveLoginAuditIpAddressAction reads the configured CDN header when login-audit.behind_cdn is enabled; otherwise it uses the request IP.
Models: LoginAudit.
Migrations: 2026_05_10_190857_01_create_login_audit_table.php.
Config: packages/login-audit/config/login-audit.php.

Extension Points

Install Impact

Adds login_audit table.
Adds settings migration.
Adds authentication log admin resource and widget.
Listens to Laravel auth events configured in login-audit.php.
May send new-device or failed-login notifications depending on config.

Install And Setup

Install with composer require capell-app/login-audit in the host Capell application.
Run migrations through the host application package install flow.
In this repository, verify package changes with vendor/bin/pest; do not use php artisan.

Laravel 13 dependency note

Until rappasoft/laravel-authentication-log merges Laravel 13 support from PR #140, host Laravel 13 apps need the PR fork as a root Composer repository and alias:

{
    "repositories": [
        {
            "type": "vcs",
            "url": "https://github.com/fdemb/laravel-authentication-log"
        }
    ],
    "require": {
        "rappasoft/laravel-authentication-log": "dev-main as 6.0.1"
    }
}

The package itself keeps the normal ^6.0|^5.0 dependency so it can move back to upstream tags when Laravel 13 support is released.

Admin And Access

LoginAuditResource (packages/login-audit/src/Filament/Resources/LoginAudits/LoginAuditResource.php)
LoginAuditsWidget (packages/login-audit/src/Filament/Widgets/LoginAuditsWidget.php)
LoginAuditSettingsSchema (packages/login-audit/src/Filament/Settings/LoginAuditSettingsSchema.php)
LoginAuditsRelationManager (packages/login-audit/src/Filament/Resources/Users/RelationManagers/LoginAuditsRelationManager.php)
LoginAuditsWidget is gated by admin and super_admin roles and the login_audits dashboard setting.
The user-resource bridge is controlled by the package settings and the host admin bridge support.

Screenshot Coverage

The Laravel 13 demo harness has screenshots for the Login Audit resource, table filters, settings schema, dashboard/widget configuration, user edit access summary, and user relation use case. The relation use case requires the host user model to expose Rappasoft’s authentications() relationship, normally by using AuthenticationLoggable.

Common Pitfalls

Set CDN IP header config before trusting IP addresses behind a proxy.
Confirm notification settings before production rollout.
Run migrations before loading the resource.
In Laravel 13 apps, install the Rappasoft PR fork at the root app level until upstream ships a compatible tag.

Docs

Testing

Run package tests from the repository root:

vendor/bin/pest packages/login-audit/tests --configuration=phpunit.xml

Maintenance Notes

Put behaviour changes in src/Actions/; UI classes, commands, and controllers should call actions instead of owning domain logic.
