Capell CMS

Layout Builder

Package docs status

Section titled “Package docs status”

This page is generated from package source documentation in the Capell packages repository and the checked-in manifest. Source documentation is not distribution status. Before running a Composer command, verify that the exact package and compatible 1.x release are available through public Packagist or the authenticated marketplace account.

Field Value
Composer package capell-app/layout-builder
Package slug layout-builder
Product group Capell Foundation
Tier free
Bundle foundation
Runtime contexts admin, frontend, console
Capell version ^1.0
Catalogue role extension
Release channel Released
Source repository capell-app/packages
Source path packages/layout-builder
Docs source packages/layout-builder/docs
Manifest capell.json

What This Plugin Adds

Section titled “What This Plugin Adds”

Layout Builder is an Available, Schema-owning Capell package in the Capell Foundation product group. It ships as capell-app/layout-builder and extends these surfaces: admin, frontend, console.

Layout Builder adds a visual page composition workflow with layout areas, widgets, reusable widgets, presets, and reversible layout edits.

Editors can add, reorder, resize, and edit page widgets in admin. Visitors receive the saved layout graph as ordinary public output without authoring markers.

Evidence: src/LayoutBuilderServiceProvider.php, src/Actions/PersistLayoutBuilderStateAction.php, src/Actions/SaveLayoutPresetAction.php, tests/Feature/Livewire/LayoutBuilderContentFirstTest.php, src/Actions/BuildPublicLayoutGraphAction.php, tests/Feature/Render/LayoutBuilderPublicRenderingSafetyTest.php, tests/Feature/Livewire/LayoutPresetLivewireTest.php.

Status details:

  • Status: Available
  • Tier: free
  • Bundle: foundation
  • Composer package: capell-app/layout-builder
  • Namespace: Capell\LayoutBuilder
  • Theme key: not applicable

Why It Matters

Section titled “Why It Matters”

For developers: Registries and typed Actions provide stable extension points for widget definitions, layout widgets, presets, and public render data.

For teams: Teams can compose pages and reuse approved sections without asking a developer to build a new template for each page.

Evidence: src/Support/LayoutWidgets/LayoutWidgetRegistry.php, src/Support/WidgetExtensions/WidgetExtensionRegistry.php, src/Actions/BuildPublicLayoutGraphAction.php, tests/Integration/PublicLayoutGraphActionTest.php, docs/overview.admin.md, src/Actions/CreateLinkedLayoutPresetAction.php, src/Actions/InsertLinkedLayoutPresetAction.php.

Screens And Workflow

Section titled “Screens And Workflow”

Screenshot contract: docs/screenshots.json.

Layout Builder visual editor with main and sidebar containers Layout Builder visual editor with main and sidebar containers Layout Builder active-theme container settings Layout Builder active-theme container settings

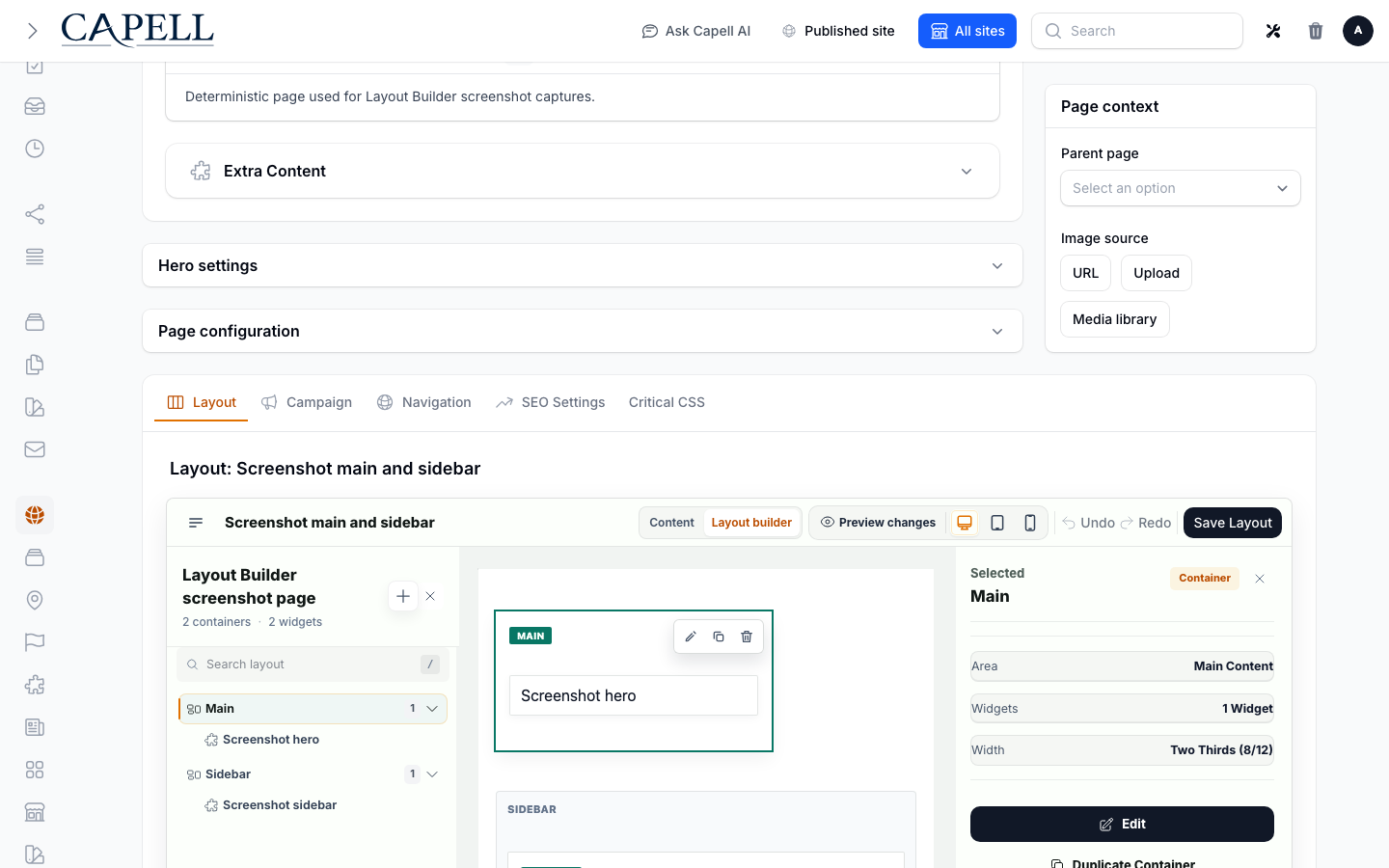

  • Layout Builder visual editor with main and sidebar containers (admin, required evidence).
  • Layout Builder content-first editing mode (admin, supplementary evidence).
  • Layout Builder add widget action (admin, supplementary evidence).
  • Layout Builder add container action (admin, supplementary evidence).
  • Layout Builder edit widget action (admin, supplementary evidence).
  • Layout Builder edit container action (admin, supplementary evidence).

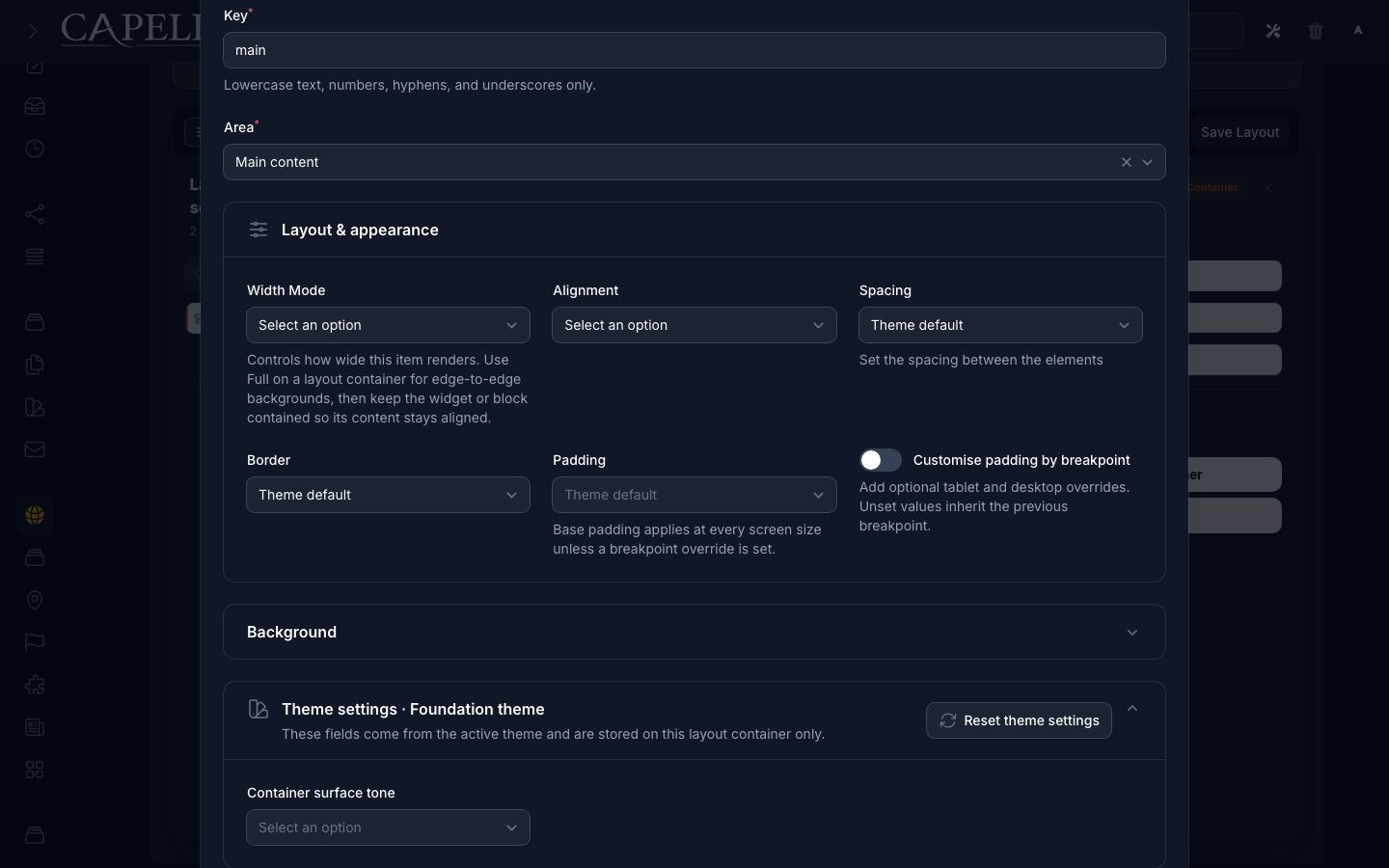

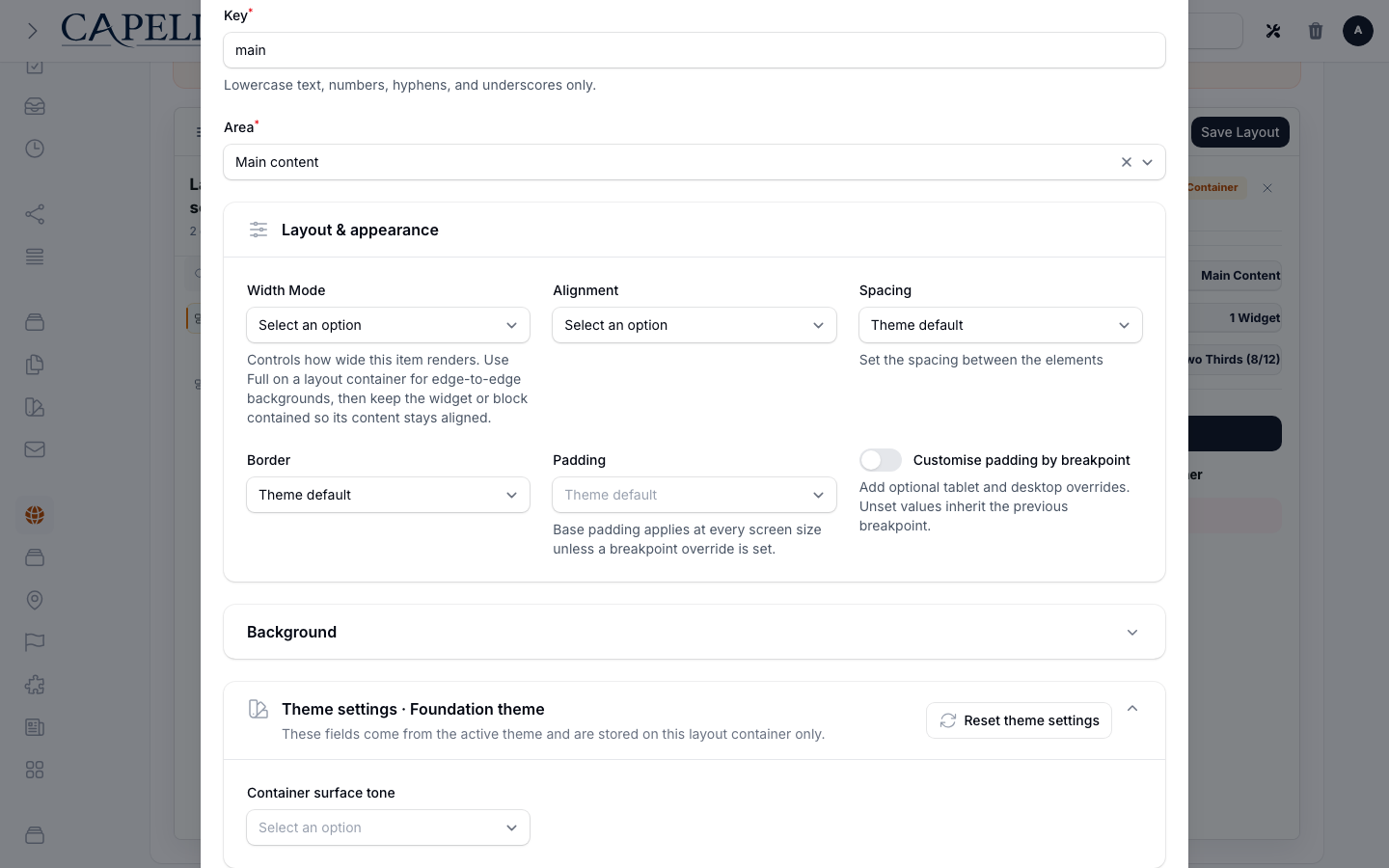

  • Layout Builder active-theme container settings (admin, required evidence).
  • Layout Builder responsive padding controls on mobile (admin, required evidence).
  • Layout Builder active-theme container settings on mobile (admin, required evidence).
  • Layout Builder responsive preview (admin, supplementary evidence).
  • Layout Builder tree selection (admin, supplementary evidence).
  • Layout Builder preset action fixture (frontend, supplementary evidence).
  • Layout Builder undo and redo actions fixture (frontend, supplementary evidence).
  • Layout Builder bulk change criteria fixture (frontend, supplementary evidence).
  • Layout Builder bulk change review fixture (frontend, supplementary evidence).
  • Layout Builder main and sidebar admin example (admin, supplementary evidence).
  • Layout Builder main and sidebar public example (frontend, supplementary evidence).
  • Layout Builder full-width public example (frontend, supplementary evidence).
  • Widgets admin index (admin, required evidence).
  • Create and edit widget form with widget assets (admin, required evidence).
  • Unused and disabled widget integrity state (admin, supplementary evidence).
  • Broken and unscoped widget asset integrity states (admin, supplementary evidence).
  • Sections admin index (admin, required evidence).
  • Widgets admin index with admin sidebar menu open (admin, supplementary evidence).

Works With

Section titled “Works With”

Technical Shape

Section titled “Technical Shape”
  • Service providers: Capell\LayoutBuilder\LayoutBuilderServiceProvider, AbstractFoundationWidgetServiceProvider.
  • Config files: packages/layout-builder/config/capell-layout-builder.php.
  • Migrations: packages/layout-builder/database/migrations/2026_05_10_190841_02_create_widgets_table.php, packages/layout-builder/database/migrations/2026_05_10_190841_03_create_widget_assets_table.php, packages/layout-builder/database/migrations/2026_05_10_190841_04_create_widget_widgets_table.php, packages/layout-builder/database/migrations/2026_05_10_190841_05_add_container_widgets_to_layouts_table.php, packages/layout-builder/database/migrations/2026_05_10_190841_06_create_layout_presets_table.php, packages/layout-builder/database/migrations/2026_06_07_000001_create_layout_bulk_change_tables.php, packages/layout-builder/database/migrations/2026_07_09_000001_create_public_widget_snapshots_table.php, packages/layout-builder/database/migrations/2026_07_10_000001_add_linked_preset_fields_to_layout_presets_table.php, packages/layout-builder/database/migrations/2026_07_10_000002_create_layout_preset_usages_table.php, packages/layout-builder/database/migrations/2026_07_10_000003_create_layout_preset_sync_runs_table.php.
  • Models: Layout, LayoutBulkChangeResult, LayoutBulkChangeRun, LayoutPreset, LayoutPresetSyncResult, LayoutPresetSyncRun, LayoutPresetUsage, PublicWidgetSnapshot, Widget, WidgetAsset, WidgetWidget.
  • Filament classes: CreateWidgetAction, ActionsRepeater, AlignSelect, AssetTypeSelect, AssetsRepeater, BackgroundSchema, BorderSelect, CarouselSettingsSchema, ColorSchemeComponent, ColumnInput, ContainerWidthSelect, CustomColorInput, and 84 more.
  • Livewire components: AuthorizesLayoutBuilderAccess, HasLayoutActions, ManagesAssets, ManagesContainers, ManagesLayoutBuilderState, ManagesWidgets, LayoutBuilder, ModalTableSelect, LayoutBuilderActionFactory.
  • Policies: LayoutPresetPolicy.
  • Extension contracts: PublicLayoutWidgetAssetsRenderer, LayoutContainerSchemaExtender, WidgetAssetSchemaExtender, WidgetSchemaExtender, LayoutContainerThemePresentationProjector, LayoutContentGroupContributor, LayoutSidebarWidgetContributor, PublicLayoutWidgetPayloadContributor, PublicLayoutWidgetPayloadResolver, WidgetAssetReferenceRepointer, WidgetExtensionBatchPayloadResolver, WidgetExtensionDependencyResolver, and 2 more.
  • Listeners: AfterRecordSaved, LayoutLoaded, MaintainPublicWidgetSnapshotsListener, SiteTreeRebuilt, TypeValidated.
  • Actions: AddHeroWidgetToLayoutAction, AddWidgetToLayoutContainerAction, AnalyzeLayoutDiagnosticsAction, AnalyzeLayoutHealthAction, ApplyLayoutPresetAction, ApplyLayoutSidebarWidgetContributionsAction, ApplyStarterLayoutPresetAction, AttachWidgetToLayoutAreaAction, BuildLayoutBuilderTreeAction, BuildLayoutContentInventoryAction, BuildLayoutHealthWorkQueueAction, BuildPublicLayoutGraphAction, and 78 more.
  • Data objects: AdminLayoutPreviewData, AdminWidgetPreviewData, ActivityItemData, LayoutHealthData, LayoutHealthWorkQueueItemData, LeastUsedWidgetData, RecentActivityData, UnusedWidgetData, WidgetGroupData, DemoSitePlanData, LayoutAssetBridgeData, LayoutBuilderStateData, and 43 more.
  • Jobs: ApplyLayoutBulkChangeRunJob, SyncLinkedLayoutPresetJob.
  • Command signatures: capell:layout-builder-install, capell:layout-builder:prune-bulk-change-runs.
  • Manifest action API: install: Capell\LayoutBuilder\Actions\InstallLayoutBuilderPackageAction, pruneLayoutBulkChangeRuns: Capell\LayoutBuilder\Actions\PruneLayoutBulkChangeRunsAction, setup: Capell\LayoutBuilder\Actions\SetupLayoutBuilderPackageAction.
  • Scheduled commands: capell:layout-builder:prune-bulk-change-runs (daily; manifest declared), capell:widget-snapshots:prune (daily; manifest declared).
  • Console command classes: InstallCommand, LayoutBulkChangeCommand, PruneLayoutBulkChangeRunsCommand, PrunePublicWidgetSnapshotsCommand, ResyncLayoutPresetCommand, WidgetVisualRegressionCommand.
  • Manifest contributions: admin-resource: Capell\LayoutBuilder\Support\LayoutBuilderAdminRegistrar, asset: Capell\LayoutBuilder\Support\LayoutBuilderAdminRegistrar, configurator: Capell\LayoutBuilder\Support\LayoutBuilderAdminRegistrar, migration: Capell\LayoutBuilder\Manifest\LayoutBuilderMigrationsContribution, model: Capell\LayoutBuilder\Manifest\LayoutBuilderModelsContribution, page-type: Capell\LayoutBuilder\Manifest\LayoutBuilderPageTypesContribution, route: Capell\LayoutBuilder\Manifest\LayoutBuilderRoutesContribution, scheduled-job: Capell\LayoutBuilder\Manifest\LayoutBuilderBulkChangePruneScheduleContribution, scheduled-job: Capell\LayoutBuilder\Manifest\LayoutBuilderSnapshotPruneScheduleContribution, schema-extender: Capell\LayoutBuilder\Support\LayoutBuilderAdminRegistrar.
  • Health checks: Capell\LayoutBuilder\Health\LayoutBuilderHealthCheck.
  • Blade views: packages/layout-builder/resources/views/components/filament/layout-builder/asset.blade.php, packages/layout-builder/resources/views/components/filament/layout-builder/assets.blade.php, packages/layout-builder/resources/views/components/filament/layout-builder/container.blade.php, packages/layout-builder/resources/views/components/filament/layout-builder/drag-handle-icon.blade.php, packages/layout-builder/resources/views/components/filament/layout-builder/widget.blade.php, packages/layout-builder/resources/views/components/infolists/entries/layout-widget.blade.php, packages/layout-builder/resources/views/components/infolists/entries/layout-widgets.blade.php, packages/layout-builder/resources/views/components/layout-widget-assets.blade.php, packages/layout-builder/resources/views/components/layout-widgets/content.blade.php, packages/layout-builder/resources/views/components/layout-widgets/extension-gated.blade.php, packages/layout-builder/resources/views/components/layout-widgets/extension-unavailable.blade.php, packages/layout-builder/resources/views/components/layout-widgets/image.blade.php, and 24 more.
  • Cache tags: layout-builder.

Data Model

Section titled “Data Model”
  • Required tables: layouts, widgets, widget_assets, widget_widgets, layout_presets, layout_bulk_change_runs, layout_bulk_change_results, layout_preset_usages, layout_preset_sync_runs, layout_preset_sync_results, public_widget_snapshots.
  • Models: Layout, LayoutBulkChangeResult, LayoutBulkChangeRun, LayoutPreset, LayoutPresetSyncResult, LayoutPresetSyncRun, LayoutPresetUsage, PublicWidgetSnapshot, Widget, WidgetAsset, WidgetWidget.
  • Core record references in migrations: sites via site_id, languages via language_id, layouts via layout_id, widgets via widget_id, themes via theme_id.
  • Migration files: 2026_05_10_190841_02_create_widgets_table.php, 2026_05_10_190841_03_create_widget_assets_table.php, 2026_05_10_190841_04_create_widget_widgets_table.php, 2026_05_10_190841_05_add_container_widgets_to_layouts_table.php, 2026_05_10_190841_06_create_layout_presets_table.php, 2026_06_07_000001_create_layout_bulk_change_tables.php, 2026_07_09_000001_create_public_widget_snapshots_table.php, 2026_07_10_000001_add_linked_preset_fields_to_layout_presets_table.php, 2026_07_10_000002_create_layout_preset_usages_table.php, 2026_07_10_000003_create_layout_preset_sync_runs_table.php.
  • Migration impact: run host migrations through the package install flow before opening package surfaces.
  • Deletion/retention behaviour: migrations declare cascade-on-delete relationships and null-on-delete relationships; retention is scheduled through capell:widget-snapshots:prune (daily; declared in the manifest) and capell:layout-builder:prune-bulk-change-runs (daily; declared in the manifest).

Install Impact

Section titled “Install Impact”
  • Required packages: capell-app/core, capell-app/admin, capell-app/block-library, capell-app/frontend.
  • Admin navigation: declares admin-resource: LayoutBuilderAdminRegistrar; each Filament page or resource controls its own navigation visibility.
  • Admin/editor extensions: configurator: LayoutBuilderAdminRegistrar, schema-extender: LayoutBuilderAdminRegistrar.
  • Permissions: ViewAny:Layout, View:Layout, Create:Layout, EditContent:Layout, EditLayout:Layout, Update:Layout, Delete:Layout, DeleteAny:Layout, Restore:Layout, ForceDelete:Layout, Replicate:Layout, Reorder:Layout, BulkMutate:Layout.
  • Public routes: registers LayoutBuilderRoutesContribution.
  • Database changes: package migrations are declared.
  • Config: config/capell-layout-builder.php.
  • Settings: no package settings declared.
  • Queues or schedules: scheduled commands capell:layout-builder:prune-bulk-change-runs (daily; manifest declared), capell:widget-snapshots:prune (daily; manifest declared); queue jobs ApplyLayoutBulkChangeRunJob, SyncLinkedLayoutPresetJob.
  • Cache tags: layout-builder.
  • Commands: capell:layout-builder-install, capell:layout-builder:prune-bulk-change-runs.

Common Pitfalls

Section titled “Common Pitfalls”
  • Keep required Capell packages on compatible v4 releases: capell-app/core, capell-app/admin, capell-app/block-library, capell-app/frontend.
  • Run migrations before opening package resources or public routes.
  • Review package configuration before production-like verification: config/capell-layout-builder.php.
  • Keep the host Laravel scheduler running so package-registered schedules can execute: capell:layout-builder:prune-bulk-change-runs (daily; manifest declared), capell:widget-snapshots:prune (daily; manifest declared).
  • Keep public Blade and cached HTML free of authoring markers, model IDs, permissions, signed editor URLs, and lazy database queries.
  • Custom write integrations must preserve invalidation for layout-builder cache tags.

Troubleshooting

Section titled “Troubleshooting”
Symptom Likely cause Check Fix
Package surface is missing after install Provider or manifest is not loaded Confirm capell.json, package composer.json, and provider registration Reinstall the package, refresh Composer autoload, and clear host caches
Admin screen or command fails on missing table Package migrations have not run Check the tables listed in Data Model Run host migrations and rerun the focused package test
Background work does not run Queue worker or declared schedule is not active Check the jobs and scheduled commands listed in Technical Shape Start the queue worker or host scheduler, then run the focused command or package test
Public output leaks unexpected state Render data, cache variation, or authoring boundary has regressed Check public Blade, cache tags, and public-output safety tests Move data loading out of Blade and rerun the package public-output tests

Quick Start

Section titled “Quick Start”
  1. Install the package: composer require capell-app/layout-builder.
  2. Run the required setup: php artisan capell:layout-builder-install.
  3. Open the package admin surface at /screenshot-fixtures/layout-builder-admin-editor and confirm Layout Builder is available.
