Form Builder

Package docs status

This page is generated from package source documentation in the Capell packages repository and the checked-in manifest. Source documentation is not distribution status. Before running a Composer command, verify that the exact package and compatible 1.x release are available through public Packagist or the authenticated marketplace account.

Field	Value
Composer package	capell-app/form-builder
Package slug	form-builder
Product group	Capell Engagement & CRM
Tier	premium
Bundle	engagement-crm
Runtime contexts	admin, frontend
Capell version	^1.0
Catalogue role	extension
Release channel	Beta
Source repository	capell-app/packages
Source path	packages/form-builder
Docs source	packages/form-builder/docs
Manifest	capell.json

What This Plugin Adds

Form Builder is an Available, Schema-owning Capell package in the Capell Engagement & CRM product group. It ships as capell-app/form-builder and extends these surfaces: admin, frontend.

Form Builder adds site-scoped form schemas, conditional and multi-step fields, calculations, spam checks, optional payment handoff, and encrypted submission records.

Editors build forms and triage submissions in the admin, while visitors complete the published form through a Livewire frontend component.

Status details:

• Status: Available
• Tier: premium
• Bundle: engagement-crm
• Composer package: capell-app/form-builder
• Namespace: Capell\FormBuilder
• Theme key: not applicable

Why It Matters

For developers: Typed field data and Actions handle visibility, validation, calculations, spam scoring, rate limits, and persistence, with a contract for replacing the spam provider.

For teams: Teams can publish structured forms, receive notifications, review or reply to submissions, and apply retention or legal-hold rules from one workflow.

Screens And Workflow

Screenshot contract: docs/screenshots.json.

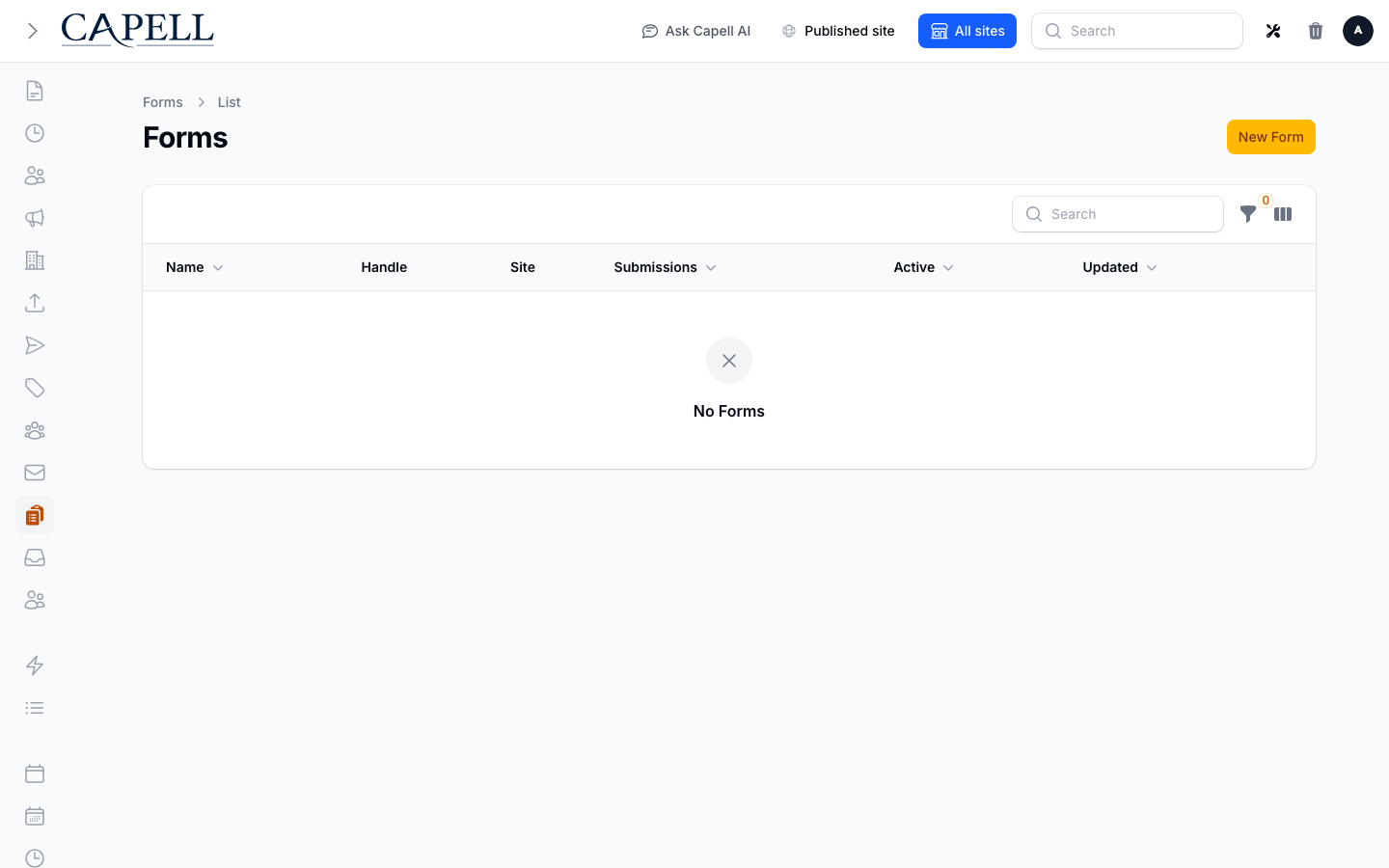

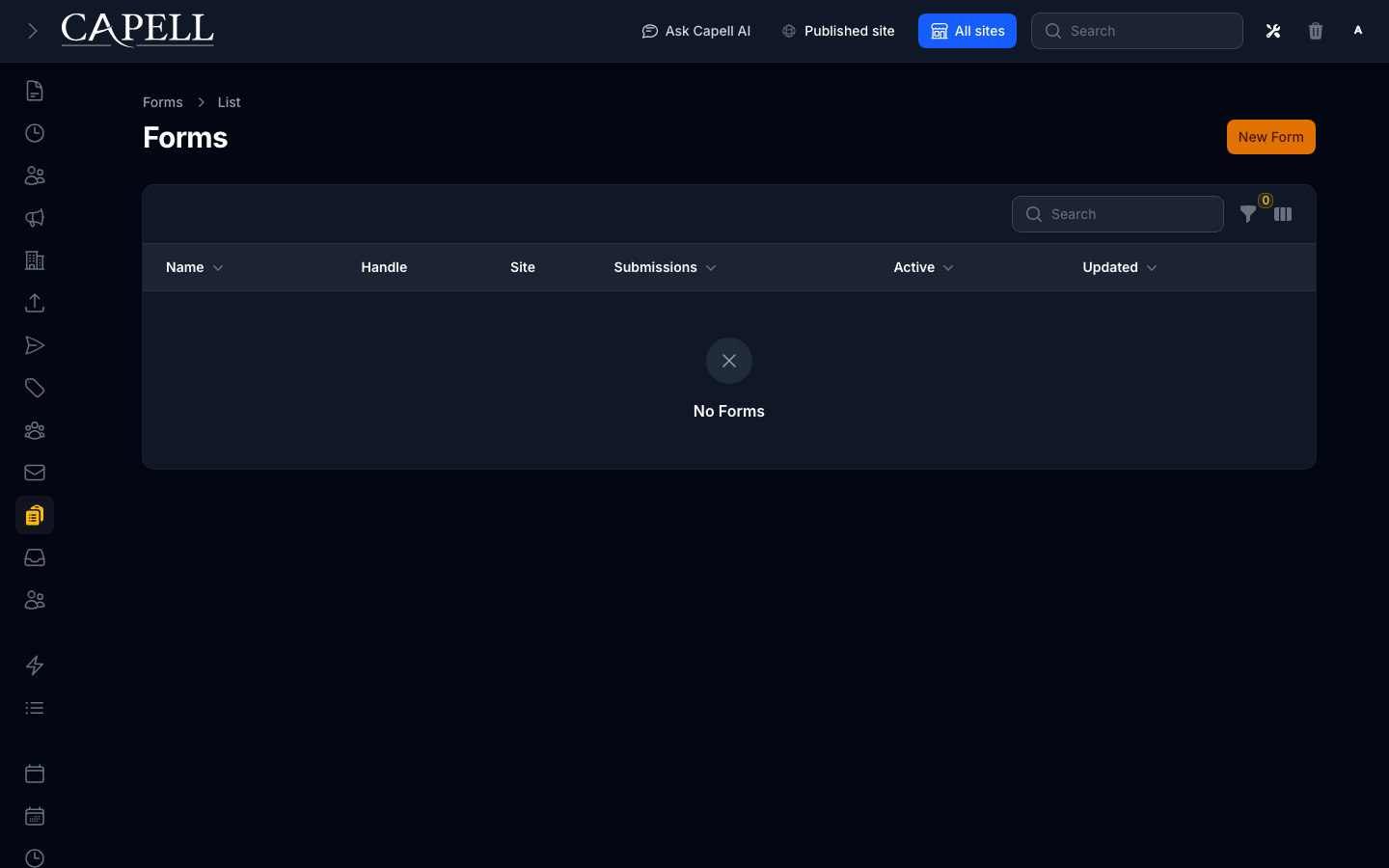

• FormBuilder admin index (admin, required evidence).

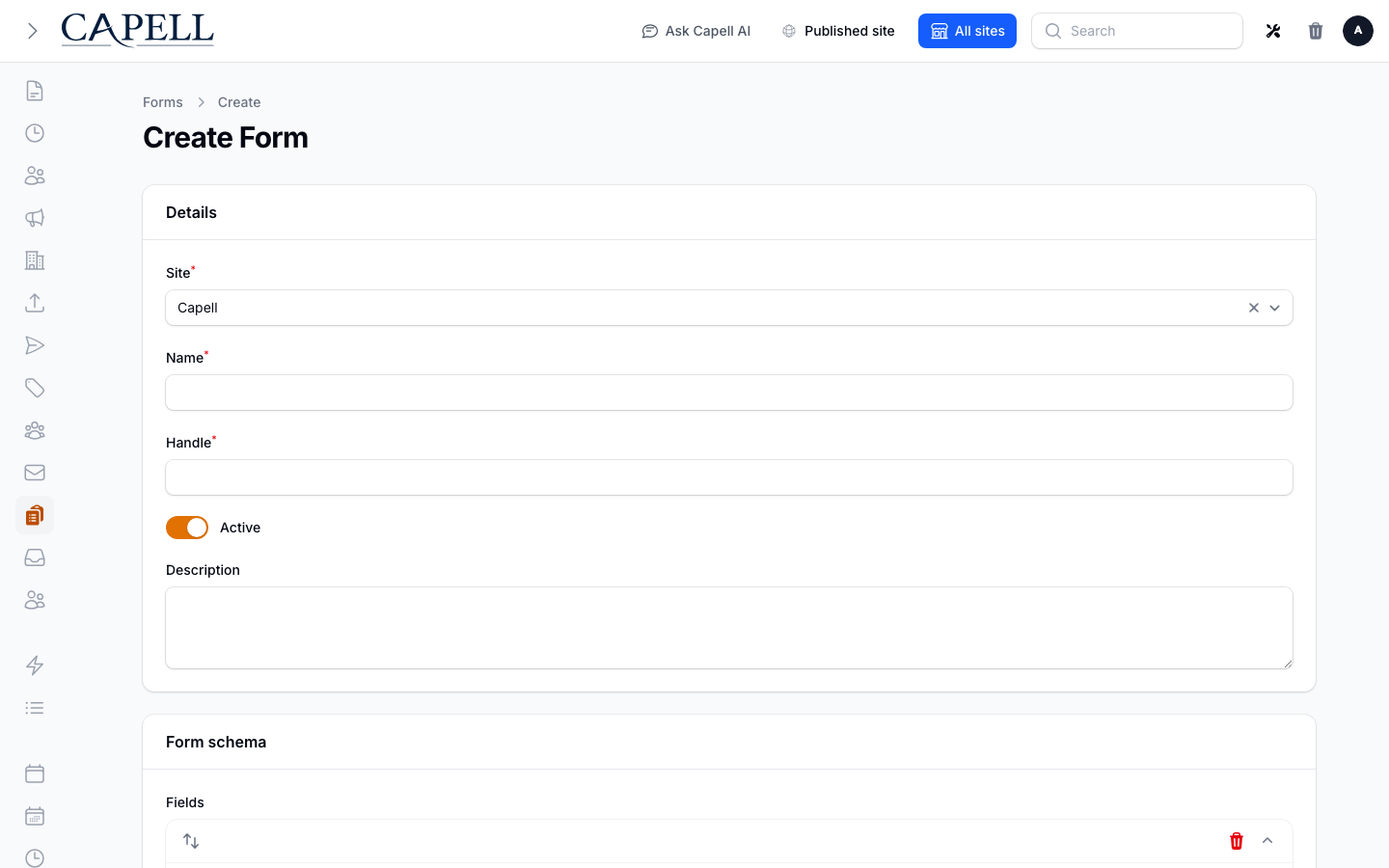

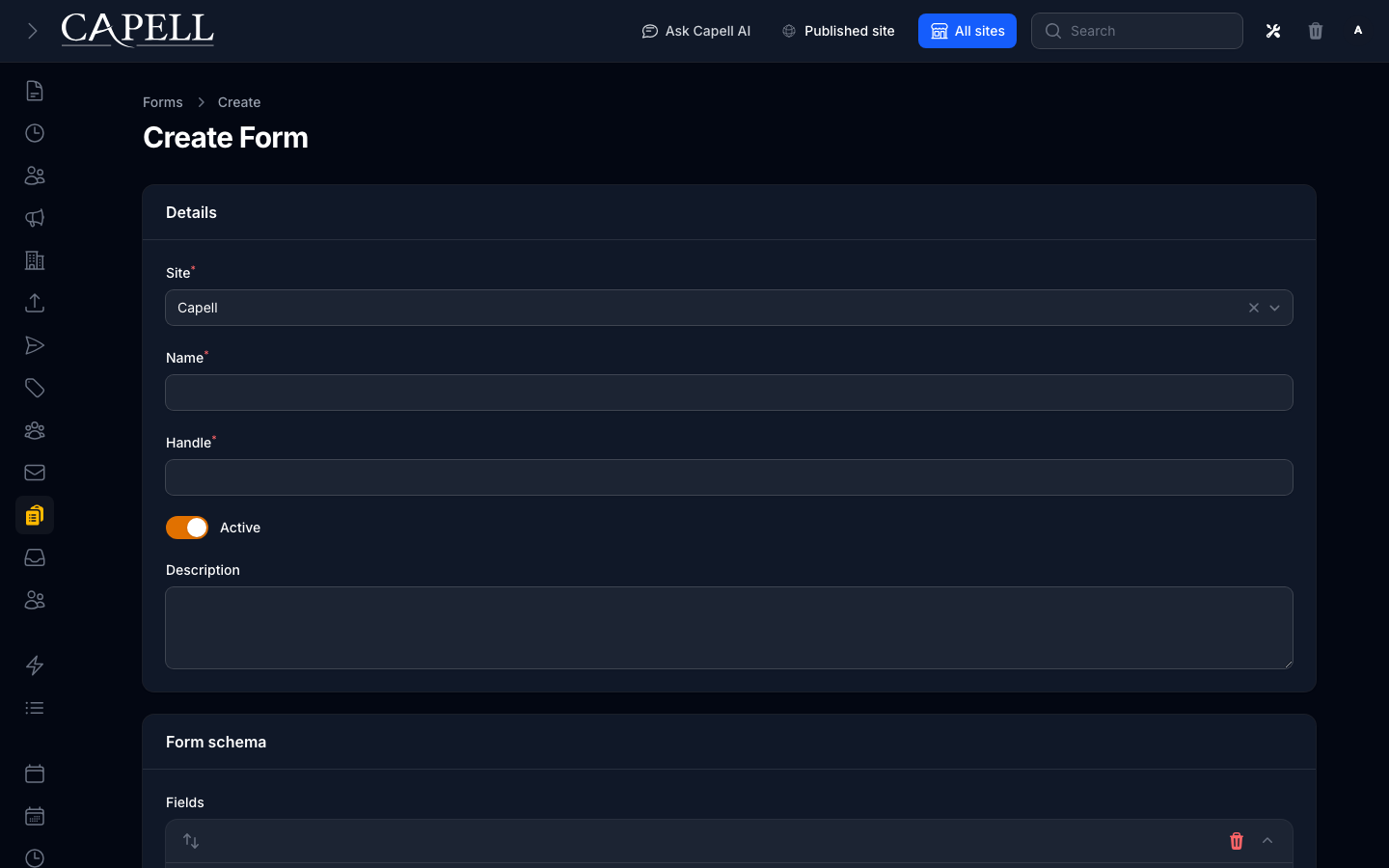

• Create/edit form schema screen (admin, required evidence).
• Submissions index (admin, required evidence).
• Frontend form output (frontend, required evidence).
• Submission detail view (admin, supplementary evidence).
• FormBuilder admin index with admin sidebar menu open (admin, supplementary evidence).

Technical Shape

Service providers

• Capell\FormBuilder\Providers\FormBuilderServiceProvider

Config files

• packages/form-builder/config/capell-form-builder.php

Migrations

• packages/form-builder/database/migrations/2026_05_10_190849_01_create_form-builder_table.php
• packages/form-builder/database/migrations/2026_05_10_190849_02_create_submissions_table.php
• packages/form-builder/database/migrations/2026_07_12_000001_add_retention_to_submissions_table.php

Models

• Form
• Submission

Filament classes

• FormResource
• CreateForm
• EditForm
• ListForms
• ListSubmissions
• SubmissionResource
• SubmissionsTable

Livewire components

• FormComponent
• FormElementComponent

Route files

• packages/form-builder/routes/payments.php

Policies

• FormPolicy
• SubmissionPolicy

Extension contracts

• FormBuilderWebhookHostResolver
• SpamProtectionProvider

Events

• FormSubmitted

Actions

• ArchiveSubmissionAction
• BuildFormAgentToolManifestAction
• BuildFormComponentValidationRulesAction
• BuildFormStepsAction
• BuildFormSubmissionPrivacyExportAction
• BuildFormValidationAttributesAction
• BuildFormValidationRulesAction
• BuildSubmissionPayloadDataAction
• BuildSubmissionPayloadEntriesAction
• BuildSubmissionsCsvAction
• CalculateFormFieldValuesAction
• CalculateSubmissionSpamScoreAction
• CreateFormPaymentCheckoutRedirectUrlAction
• CreateFormPaymentCheckoutSessionAction
• CreateFormPaymentCheckoutUrlAction
• CreateSubmissionAction
• DispatchSubmissionWebhookAction
• DispatchUnstoredFormSubmissionAction
• EraseFormSubmissionPrivacyDataAction
• EvaluateFormFieldVisibilityAction
• GuardFormSubmissionRateLimitAction
• InstallThemeDemoFormsAction
• IsFormPaymentIntegrationAvailableAction
• MarkSubmissionReadAction
• MarkSubmissionSpamAction
• PruneExpiredFormSubmissionsAction
• RedactSubmissionWebhookErrorMessageAction
• ReplyToSubmissionAction
• ResolveFormComponentFormAction
• ResolveFormComponentStepStateAction
• ResolveFormInitialValuesAction
• ResolveFormPaymentCheckoutDataAction
• ResolveFormRequestSiteAction
• ResolveFormSubmissionPrivacyRecordIdsAction
• ResolveSubmissionReplyAddressAction
• ResolveVisibleFormFieldsAction
• SeedFormBuilderScreenshotFixtureAction
• SendSubmissionAutoresponderAction
• SendSubmissionNotificationAction

Data objects

• FormComponentStepStateData
• FormFieldConditionData
• FormFieldData
• FormPaymentCheckoutData
• FormRequestContextData
• FormSettingsData
• FormStepData
• FormSubmissionData
• FormSubmissionPrivacyRecordIdsData
• ResolvedFormWebhookEndpointData
• SubmissionMetaData
• SubmissionPayloadData
• SubmissionSpamScoreData

Jobs

• DispatchSubmissionWebhookJob

Command signatures

• capell:form-builder:export-submissions
• capell:form-builder:prune

Manifest action API

• archiveSubmission: Capell\FormBuilder\Actions\ArchiveSubmissionAction
• buildFormAgentToolManifest: Capell\FormBuilder\Actions\BuildFormAgentToolManifestAction
• buildFormSteps: Capell\FormBuilder\Actions\BuildFormStepsAction
• buildFormValidationRules: Capell\FormBuilder\Actions\BuildFormValidationRulesAction
• buildSubmissionPayloadData: Capell\FormBuilder\Actions\BuildSubmissionPayloadDataAction
• calculateFormFieldValues: Capell\FormBuilder\Actions\CalculateFormFieldValuesAction
• calculateSubmissionSpamScore: Capell\FormBuilder\Actions\CalculateSubmissionSpamScoreAction
• createFormPaymentCheckout: Capell\FormBuilder\Actions\CreateFormPaymentCheckoutSessionAction
• createFormPaymentCheckoutRedirectUrl: Capell\FormBuilder\Actions\CreateFormPaymentCheckoutRedirectUrlAction
• createFormPaymentCheckoutUrl: Capell\FormBuilder\Actions\CreateFormPaymentCheckoutUrlAction
• createSubmission: Capell\FormBuilder\Actions\CreateSubmissionAction
• dispatchUnstoredFormSubmission: Capell\FormBuilder\Actions\DispatchUnstoredFormSubmissionAction
• evaluateFormFieldVisibility: Capell\FormBuilder\Actions\EvaluateFormFieldVisibilityAction
• markSubmissionRead: Capell\FormBuilder\Actions\MarkSubmissionReadAction
• markSubmissionSpam: Capell\FormBuilder\Actions\MarkSubmissionSpamAction
• replyToSubmission: Capell\FormBuilder\Actions\ReplyToSubmissionAction
• resolveVisibleFormFields: Capell\FormBuilder\Actions\ResolveVisibleFormFieldsAction
• sendSubmissionNotification: Capell\FormBuilder\Actions\SendSubmissionNotificationAction

Scheduled commands

• capell:form-builder:prune (daily; package registered)

Console command classes

• ExportSubmissionsCommand
• PruneExpiredFormSubmissionsCommand
• SeedFormBuilderScreenshotFixtureCommand

Manifest contributions

• admin-resource: Capell\FormBuilder\Manifest\FormResourceContribution
• admin-resource: Capell\FormBuilder\Manifest\SubmissionResourceContribution
• console-command: Capell\FormBuilder\Manifest\FormBuilderConsoleCommandsContribution
• frontend-component: Capell\FormBuilder\Manifest\FormElementComponentContribution
• model: Capell\FormBuilder\Manifest\FormModelContribution
• model: Capell\FormBuilder\Manifest\SubmissionModelContribution
• route: Capell\FormBuilder\Manifest\FormBuilderPaymentRoutesContribution
• scheduled-job: Capell\FormBuilder\Manifest\FormBuilderPruneScheduleContribution

Health checks

• Capell\FormBuilder\Health\FormBuilderHealthCheck

Blade views

• packages/form-builder/resources/views/filament/submissions/payload.blade.php
• packages/form-builder/resources/views/livewire/form-element.blade.php
• packages/form-builder/resources/views/livewire/form.blade.php
• packages/form-builder/resources/views/mail/submission-autoresponder.blade.php
• packages/form-builder/resources/views/mail/submission-notification.blade.php
• packages/form-builder/resources/views/mail/submission-reply.blade.php

Cache tags

• form-builder

Data Model

• Required tables: forms, submissions.
• Models: Form, Submission.
• Core record references in migrations: sites via site_id.
• Migration files: 2026_05_10_190849_01_create_form-builder_table.php, 2026_05_10_190849_02_create_submissions_table.php, 2026_07_12_000001_add_retention_to_submissions_table.php.
• Migration impact: run host migrations through the package install flow before opening package surfaces.
• Deletion/retention behaviour: migrations declare cascade-on-delete relationships; retention is scheduled through capell:form-builder:prune (daily; registered by the package provider).

Install Impact

• Required packages: capell-app/admin, capell-app/core, capell-app/frontend.
• Admin navigation: declares admin-resource: FormResourceContribution, admin-resource: SubmissionResourceContribution; each Filament page or resource controls its own navigation visibility.
• Admin/editor extensions: none declared.
• Permissions: ViewAny:Form, View:Form, Create:Form, Update:Form, Delete:Form, DeleteAny:Form, Restore:Form, RestoreAny:Form, ForceDelete:Form, ForceDeleteAny:Form, Reorder:Form, ViewAny:Submission, View:Submission, Reply:Submission, Update:Submission; access also governed by package policies: FormPolicy, SubmissionPolicy.
• Public routes: loads routes/payments.php; registers FormBuilderPaymentRoutesContribution.
• Database changes: package migrations are declared.
• Config: config/capell-form-builder.php.
• Settings: no package settings declared.
• Queues or schedules: scheduled commands capell:form-builder:prune (daily; package registered); queue jobs DispatchSubmissionWebhookJob.
• Cache tags: form-builder.
• Commands: capell:form-builder:export-submissions, capell:form-builder:prune.

Common Pitfalls

• Keep required Capell packages on compatible v4 releases: capell-app/admin, capell-app/core, capell-app/frontend.
• Run migrations before opening package resources or public routes.
• Review package configuration before production-like verification: config/capell-form-builder.php.
• Review middleware, throttling, signatures, and public-output safety in routes/payments.php before exposing routes.
• Keep the host Laravel scheduler running so package-registered schedules can execute: capell:form-builder:prune (daily; package registered).
• Keep public Blade and cached HTML free of authoring markers, model IDs, permissions, signed editor URLs, and lazy database queries.
• Custom write integrations must preserve invalidation for form-builder cache tags.

Troubleshooting

Symptom	Likely cause	Check	Fix
Package surface is missing after install	Provider or manifest is not loaded	Confirm capell.json, package composer.json, and provider registration	Reinstall the package, refresh Composer autoload, and clear host caches
Admin screen or command fails on missing table	Package migrations have not run	Check the tables listed in Data Model	Run host migrations and rerun the focused package test
Route returns unexpected output	Route cache, middleware, or signed URL setup does not match the package route file	Check the route files listed in Technical Shape	Clear route cache and verify middleware before exposing public routes
Background work does not run	Queue worker or declared schedule is not active	Check the jobs and scheduled commands listed in Technical Shape	Start the queue worker or host scheduler, then run the focused command or package test
Public output leaks unexpected state	Render data, cache variation, or authoring boundary has regressed	Check public Blade, cache tags, and public-output safety tests	Move data loading out of Blade and rerun the package public-output tests

Quick Start

1. Install the package: composer require capell-app/form-builder.
2. Open the package admin surface at /admin/form-builder/forms and confirm Form Builder is available.

Next Steps

• Package docs
• Overview
• Worked extension examples
• Worked action walkthroughs
• Admin guide
• Configuration files: config/capell-form-builder.php.
• Troubleshooting
• Screenshot contract
• Marketplace assets
• Capell content language plan
• Capell documentation design system
• Capell and package ERD notes
• Related packages: Payments.
